Big Tex Pro Series Tandem Axle Equipment Trailer
Call for Quote
(407) 847-2036Kissimmee, FL
When you need a jack of all trades thats a master of all your equipment hauling needs, the 10ET Pro Series Tandem Axle Equipment Trailer wont let you down. It brings excellent durability to the table when youre hauling light and medium duty equipment and features an 83"-wide deck, so the possibilities are nearly endless. And its designed for safety and performance down to the last bolt, whether youre driving or loading. Its got forward self-adjusting brakes for easier brake maintenance, plus a cleated dovetail design so you can confidently load equipment without slipping. When you combine innovation, durability, and versatility, this trailer is what you get.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview

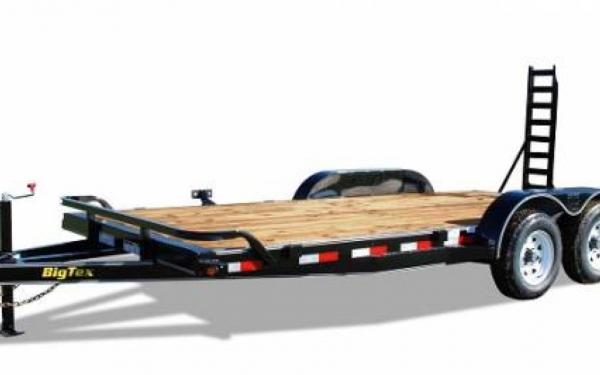

Big Tex Pro Series Tandem Axle Equipment Trailer
10ET-18BK
Specs:
- G.A.W.R. (Ea. Axle) 5,080#
- Coupler Adjustable Forged 2-5/16"
- Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
- Jack 7K Drop Leg (Bolted On)
- Tongue 5" Channel Fold Back
- Top Rail None
- Frame 5" Channel
- Crossmembers 3" Channel
- Uprights None
- Fenders 9" x 72" Tear Drop w/Back (Removable)
- Axles Two 5,200# EZ Lube w/Electric Brakes
- Suspension Multi-Leaf Spring w/Equalizer
- Tire ST225/75-15 Load Range D
- Wheel 15 x 6 White Spoke 6 Bolt
- Floor 2" Pine
- Lights LED D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 7-Way RV
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Adjustable Forged Coupler
- Safety Chains Attached w/Cold Rolled Eyelets
- 7K Drop Leg Jack
- Lower Jack Support Plate
- Fold Back Tongue (14' and longer)
- Tie Down Pockets, Sides & Front
- 2" Tubular Stop Rail
- Floor Secured w/Torx Screws
- Cambered EZ Lube Axles w/Electric Brake on Each
- Complete Break-A-Way System w/Charger
- Spare Tire Mount
- 32" Dovetail
- 5' Stand-Up Ramps w/Support Leg
- Reflective Marker Tape
- Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 7570 lbs.
- External Width:
- 83"
- External Length:
- 18'
- Hitch Type:
- Bumper Pull
- Category:
- Car/Auto Haulers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Dove Tail
- Color:
- Black
- GVWR:
- 9990
- Capacity:
- 7570
Features/Specifications
Features
| Axle | (2) 5,200# Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | 8,000# Drop Leg (Bolted On) |
| Tire | ST225/75 R-15 Load Range D |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 5" Channel |
| Wheel | 15" x 6"; Black Mod 6 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn and Clearance |
| Tongue | 5" Channel Fold Back/Wrap |
| Coupler | Adjustable Forged 2-5/16" |
| Fenders | 9" x 72" Tear Drop w/Back (Removable) |
| G.V.W.R. | 9,990# |
|---|---|
| Top Rail | 3/16" Fabricated Front Stop Rail |
| Uprights | NONE |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 1/4" Grd. 70 w/Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 5,080# |
Specifications
Big Tex 10ET Pro Series Tandem Axle Equipment Trailer
| Model | Description |
|---|---|
| 10ET-16 | 83" x 16' Pro Series Tandem Axle Equipment Trailer |
| 10ET-18 | 83" x 18' Pro Series Tandem Axle Equipment Trailer |
| 10ET-20 | 83" x 20' Pro Series Tandem Axle Equipment Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138' | 102" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 2,320# | 7,670# | N/A |
| 18' | 2,420# | 7,570# | N/A |
| 20' | 2,520# | 7,470# | N/A |
Standard/Optional Equipment
Standard Equipment
- Rubrail and Stake Pockets Along Sides
- 36" Cleated Dovetail
- 4 Tall Channel Knee Ramp (KR)
- Forged Adjustable 2-5/16" Coupler
- Fold Back/Wrap Tongue
- Set-Back, 8,000# Drop Leg Jack
- Fabricated Front Stop Rail
- Quick Lubricating Hubs
- Premium Brand Axles
- Cambered Axles
- Tear Drop Style Fenders (Removable)
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount
- Complete Break-A-Way System w/Charger
- Radial Tires
- (6) D-Rings to Secure Equipment
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| RAMPS | 3 Self Cleaning Dovetail w/3 Mega Ramps |
| RAMPS | 32" Wood Filled Dovetail in Excisting Length w/5 Stand Up Ramps |
| RAMPS | 5 Rear Slide In Ramps (Straight Deck w/ Stabilizers) |
| TIRE/WHEEL | Spare Tire (ST225/75 R-15 LR-D) |
