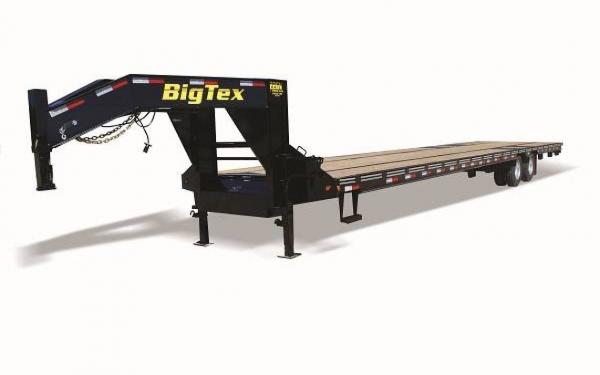

Big Tex Tandem Dual Axle Gooseneck Trailer
Call for Quote
(407) 847-2036Kissimmee, FL
Ready for the ultimate gooseneck trailer? A premium trailer providing long-lasting durability, the 22GN Tandem Dual Flatbed Gooseneck Trailer is built to work the toughest jobs in the most rugged conditions. From its dual 2-Speed 50K landing gear to HD adjustable suspension, its designed to handle heavy-duty hauling needs, particularly for transporting heavy construction equipment and hotshotting.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex Tandem Dual Axle Gooseneck Trailer
22GN-20BK+5
Specs:
- G.A.W.R. (Ea. Axle) 10,000#
- 2-5/16" Ball Adj. Square Crank Type
- 3/8" Grd.70 Safety Chains w/Safety Latch Hook (2 each)
- Dual 12K Drop Leg Jacks (Bolted On)
- W12x16# I-Beam Neck
- W12x16# I-Beam Frame
- 3" Channel Crossmembers
- 6" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools
- 2-GD 10,000# Dual Wheel Axles w/Electric Brakes(Oil Bath)
- Multi-Leaf Slipper Spring w/Equalizer Suspension
- ST235/80 R-16 Load Range E Dual Tire
- 16 x 6 HD Dual 8 Bolt
- 2" Pine Floor
- D.O.T. Stop, Tail, Turn & Clearance Lights
- 7-Way RV Electrical Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- 2 Bolted on Jacks w/Greasable Handle
- 102" Overall Width
- Low Profile Bed, Pierced Frame
- 28' (Flat Deck) and Longer Included Torque Tube
- Lockable Toolbox Between GN Uprights
- Formed Crossmembers to Frame Gussets
- Modular Sealed Wiring Harness
- 1-1/4" Pipe Chain Spool Between Stake Pockets
- Safety Reflective Marker Tape
- Oil Bath Axles w/ Electric Brake on each
- Complete Break-A-Way System w/Battery & Charger
- Radial Tires
- Spare Tire Mount
- Grommet Mount Sealed LED Lighting
- 2 Side Bed Steps
- 5' Dovetail w/Double Hinged Spring Assist Fold Over Ramps
- HD Adjustable Suspension
- Availability:
- Order In
- Axle Config:
- Tandem Dual
- Max Payload:
- 18100 lbs.
- External Width:
- 102"
- External Length:
- 25'
- Hitch Type:
- Gooseneck
- Category:
- Flatbed Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Dove Tail
- Color:
- Black
- GVWR:
- 23900
- Capacity:
- 18100
Features/Specifications
Features
| Axle | (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| Jack | Dual 12,000# Drop Leg Jacks (Bolted On) |
| Neck | 12" I-Beam, 16# |
| Tire | ST235/80 R-16 Load Range E Dual |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 12" I-Beam, 16# (19# on 28 Trailer & Longer) |
| Wheel | 16" x 6"; Black Dual Wheel 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Demco EZ Latch |
| Dovetail | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 23,900# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Gooseneck |
| Side Rails | 6" Channel w/Rub Rail, Stake Pockets, and Chain Spools |
| Suspension | Heavy Duty 30,000# Adjustable |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 10,000# |
Specifications
Big Tex 22GN Tandem Dual Wheel Gooseneck Trailer
| Model | Description |
|---|---|
| 22GN-20+5 | 102" x 20' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-25+5 | 102" x 25' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-28+5 | 102" x 28' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-30+5 | 102" x 30' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-35+5 | 102" x 35' + 5' Tandem Dual Wheel Gooseneck |
| 22GN-36 | 102" x 36' Tandem Dual Wheel Gooseneck (Straight) |
| 22GN-40 | 102" x 40' Tandem Dual Wheel Gooseneck (Straight) |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240' | 186" | 54' |
| 25'+5' | 300" | 240" | 60" |
| 28'+5' | 336" | 264" | 72" |
| 30'+5' | 360" | 280" | 80" |
| 35'+5' | 420" | 320" | 100" |
| 36' | 432" | 288" | 144" |
| 40' | 480" | 320" | 160" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 5,800# | 18,100# | N/A |
| 25'+5' | 6,300# | 17,600# | N/A |
| 28'+5' | 6,900# | 17,000# | N/A |
| 30'+5' | 7,200# | 16,700# | N/A |
| 35'+5' | 7,950# | 15,950# | N/A |
| 36' | 7,200# | 16,700# | N/A |
| 40' | 7,800# | 16,100# | N/A |
Standard/Optional Equipment
Standard Equipment
- 2-5/16" Demco EZ Latch Gooseneck
- Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame Design
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 30,000# Adjustable Suspension
- Torque Tube Standard on 28 (Flat Deck) & Longer
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Spare Tire Mount (Top of Neck)
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel-Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BRAKES | Electric Over Hydraulic Brakes (Disc) |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 12" x 18" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACK | Dual 2-Speed Landing Gear |
| JACKS | Dual Electric Over Hydraulic Jacks by Stillwell |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | 8 Rear Slide-In Ramps (Straight Deck Only) |
| RAMPS | No Dovetail Option (Deletes Dovetail and Ramps) |
| TIRE/WHEEL | Tire Upgrade (ST215/75 R-17.5 LR-H Dual) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare |
