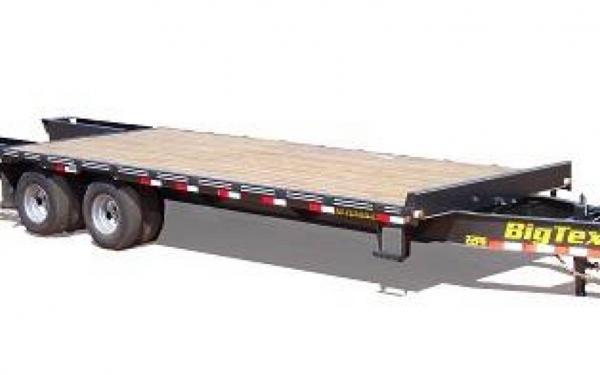

Pintle Hook Big Tex Tandem Dual Axle Trailer
Call for Quote
(407) 847-2036Kissimmee, FL
Are you taking on heavy-duty towing jobs with a pintle hitch, but you need more strength? Upgrade to the big and strong 22PH Tandem Dual Wheel Pintle Trailer, a hauler thats ready to work hard all day long. Perfect for agricultural, construction, and landscaping, the 22PH performs in tough and rugged conditions with standard features such as two 10K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. And with 23,900 lbs G.V.W.R., its purpose-built to haul substantial loads and heavy-duty equipment. Hard work pays off; and so does the 22PH.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Pintle Hook Big Tex Tandem Dual Axle Trailer
22PH-25BK+5
Specs:
- G.V.W.R. 23,900#
- G.A.W.R. (Ea. Axle) 10,000#
- 2-5/16" Ball Adj. Square Crank Type
- 3/8" Grd.70 Safety Chains w/Safety Latch Hook (2 each)
- Dual 12K Drop Leg Jacks (Bolted On)
- W12x16# I-Beam Neck
- W12x16# I-Beam Frame
- 3" Channel Crossmembers
- 6" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools
- 2-GD 10,000# Dual Wheel Axles w/Electric Brakes(Oil Bath)
- Multi-Leaf Slipper Spring w/Equalizer Suspension
- ST235/80 R-16 Load Range E Dual Tire
- 16 x 6 HD Dual 8 Bolt
- 2" Pine Floor
- D.O.T. Stop, Tail, Turn & Clearance Lights
- 7-Way RV Electrical Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- 2 Bolted on Jacks w/Greasable Handle
- 102" Overall Width
- Low Profile Bed, Pierced Frame
- 28' (Flat Deck) and Longer Included Torque Tube
- Lockable Toolbox Between GN Uprights
- Formed Crossmembers to Frame Gussets
- Modular Sealed Wiring Harness
- 1-1/4" Pipe Chain Spool Between Stake Pockets
- Safety Reflective Marker Tape
- Oil Bath Axles w/ Electric Brake on each
- Complete Break-A-Way System w/Battery & Charger
- Radial Tires
- Spare Tire Mount
- Grommet Mount Sealed LED Lighting
- 2 Side Bed Steps
- 5' Dovetail w/Double Hinged Spring Assist Fold Over Ramps
- HD Adjustable Suspension
- Availability:
- Order In
- Axle Config:
- Tandem Dual
- Max Payload:
- 17600 lbs.
- External Width:
- 102"
- External Length:
- 30'
- Hitch Type:
- Bumper Pull
- Category:
- Flatbed Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Dove Tail
- Color:
- Black
- GVWR:
- 23900
- Capacity:
- 17600
Features/Specifications
Features
| Axle | (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| Jack | 12,000# Drop Leg Jack (Bolted On) |
| Tire | ST235/80 R-16 Load Range E Dual |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 12" I-Beam |
| Wheel | 16" x 6"; Black Dual 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 12" I-Beam, 16# |
| Coupler | 3" ID Pintle Ring |
| Dovetail | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 23,900# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Pintle Hitch |
| Side Rails | 8" Channel w/Rub Rail, Stake Pockets, and Chain Spools |
| Suspension | Heavy Duty 30,000# Adjustable |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 10,000# |
Specifications
Big Tex 22PH Tandem Dual Wheel Pintle Trailer
| Model | Description |
|---|---|
| 22PH-20+5 | 102" x 20' + 5' Tandem Dual Wheel Pintle |
| 22PH-25+5 | 102" x 25' + 5' Tandem Dual Wheel Pintle |

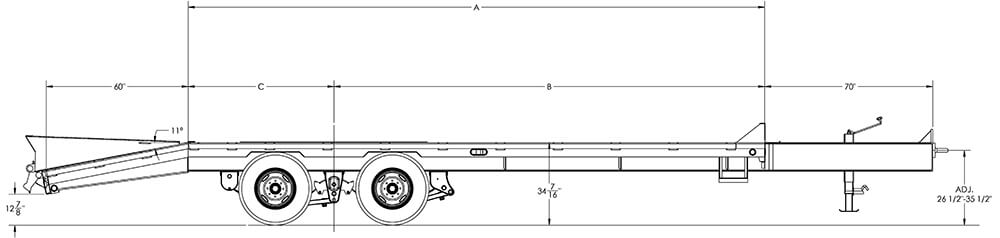

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240" | 180" | 60" |
| 25'+5' | 300" | 216" | 84" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 5,600# | 18,300# | N/A |
| 25'+5' | 6,100# | 17,800# | N/A |
Standard/Optional Equipment
Standard Equipment
- 3" ID Pintle Ring
- 12,000# Drop Leg Jack- Top Wind
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame
- (2) Side Bed Steps
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 30,000# Adjustable Suspension
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Spare Tire Mount
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel- Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Lockable Lid Over Tool Storage in Tongue |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 12" x 18" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACK | Dual 2-Speed Landing Gear |
| JACK | Dual Single-Speed Drop-Leg Jacks |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | 8 Rear Slide-In Ramps (Straight Deck Only) |
| RAMPS | No Dovetail Option (Deletes Dovetail & Ramps) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare |
| TIRE/WHEEL | Tire Upgrade (ST235/75 R-17.5 LR-H Dual) Includes Spare |
